cartagen.simplify_building_ruas

simplify_building_ruas(building, edge_threshold, parallel_limit=0.3490658503988659, orthogonal_limit=0.3490658503988659)

Simplify buildings by removing edges.

This algorithm proposed by Ruas [1] analyses the edges of the polygon to find the ones that should be removed and how they can be replaced. It was integrated in the AGENT project. Port of the CartAGen implementation of the algorithm.

Parameters:

• building (Polygon) – The shapely building to be simplified.

• edge_threshold (float) – Minimum length of an edge to be considered by the simplification algorithm.

• parallel_limit (float, optional) – Limit angle to consider an edge into the parallel case of the simplification algorithm. The default value is set to \(20·pi/180\)

• orthogonal_limit (float, optional) – Limit angle to consider an edge into the orthogonal case of the simplification algorithm. The default value is set to \(20·pi/180\)

Returns:

Polygon

See also

square_polygon_ls

Squares polygon using the least squares method.

References

[1]

Anne Ruas. Modèle de généralisation de données géographiques à base de contraintes et d’autonomie. PhD thesis, École nationale des sciences géographiques, Marne-la-Vallée, France, 1999. Thèse de doctorat dirigée par Désarménien, Jacques Sciences de l’information géographique Marne-la-Vallée 1999. URL: http://www.theses.fr/1999MARN0050.

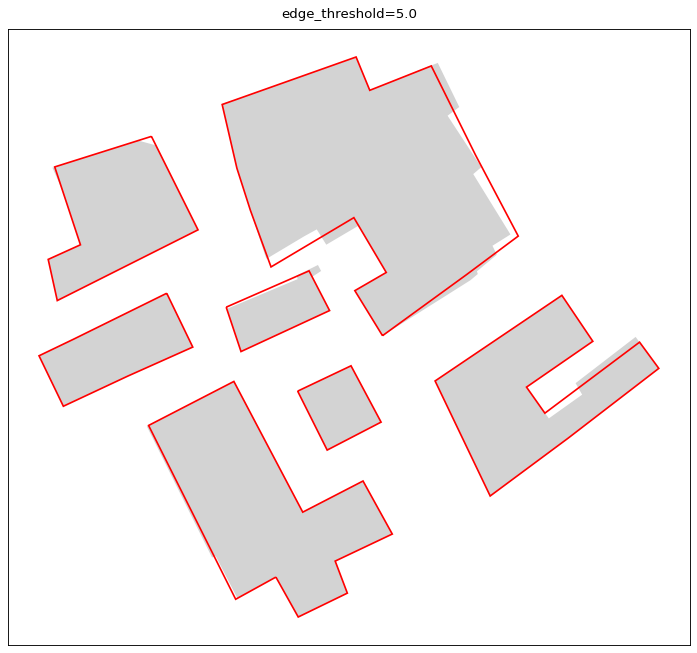

Examples

>>> building = Polygon([(0, 0), (0, 10), (2, 10), (2, 9), (10, 9), (10, 0), (0, 0)])
>>> simplify_building_ruas(building, 2.5)
<POLYGON ((0 0, 0 9.5, 10 9.5, 10 0, 0 0))>

(Source code)
