cartagen.simplify_building_morphological

simplify_building_morphological(building, tolerance, max_iteration=100)

Simplify buildings using morphological closing and structural generalization.

This algorithm performs a global structural simplification. For MultiPolygon, it uses a morphological closing (buffer expansion and contraction using mitre joins) to merge nearby structures and clear micro-gaps. For individual rings (exterior and interior), it iteratively detects and processes small segments below the threshold, relocating vertices to force parallel extensions or orthogonal alignments.

This algorithm is a Python translation of the Lithuanian openmap association vector-map repository simplification algorithm.

Parameters:

• building (Polygon or MultiPolygon) – The shapely geometry (building) to be simplified.

• tolerance (float) – The maximum distance tolerance for geometric simplification. Also used as the buffer distance for morphological closing and as a square root threshold (tolerance^2) for filtering out small interior rings.

• max_iteration (int, optional) – The maximum number of iterative vertex adjustments allowed during the line simplification phase. The default value is set to 100.

Returns:

Polygon or MultiPolygon – The simplified building geometry of the same type as the input.

See also

simplify_building_ruas

Simplify buildings by removing edges using Ruas algorithm.

Examples

>>> from shapely.geometry import Polygon
>>> building = Polygon([(0, 0), (0, 10), (2, 10), (2, 9), (10, 9), (10, 0), (0, 0)])
>>> simplify_building_morphological(building, 2.0)
<POLYGON ((0 0, 0 9, 10 9, 10 0, 0 0))>

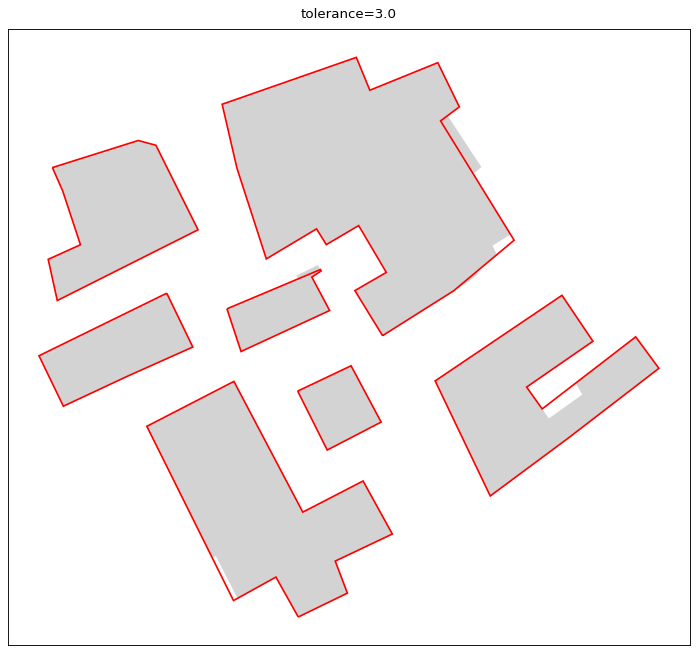

(Source code)
