cartagen.coalescence_splitting#
- coalescence_splitting(line, width, legibility_factor=1.7, join_style='round', quad_segs=16, debug=False)#
Splits a line into parts when coalescence is detected.

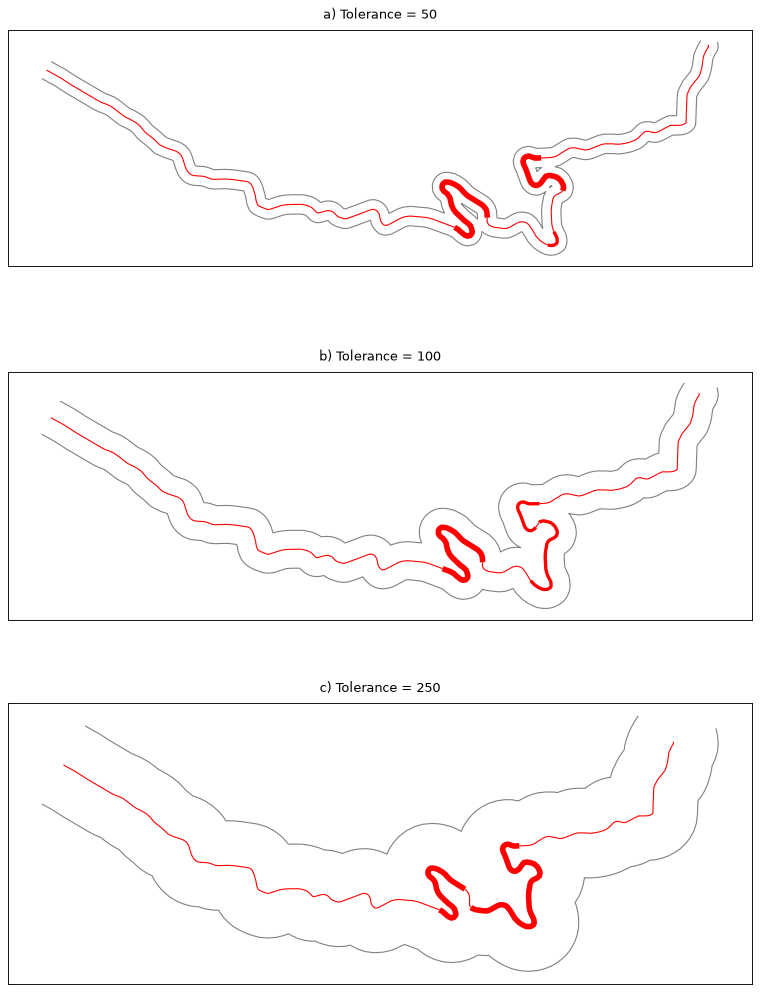

This algorithm proposed by Mustière [1] [2] subdivides the provided line into multiple parts with either no coalescence (‘none’), or coalescence on one side (‘left’ or ‘right’), or coalescence on both sides (‘both’).
- Parameters:
line (
LineString) – The line to detect the pastiness from.width (
float) – The width of the offset used to detect the coalescence.legibility_factor (
float, optional) – Detected coalescence chunks that are separated by a distance below legibility_factor * tolerance are grouped together.join_style (
str, optional) – The type of caps at the start and end of the provided line. Possible values are ‘round’ or ‘flat’.quad_segs (
int, optional) – The number of point allowed per circle quadrant when interpolating points using round method.
- Returns:
Tuple[List[LineString],List[str]]– Tuple of two -> A line and its coalescence (‘none’, ‘left’, ‘right’, ‘both’)
References
