cartagen.hull_swinging_arm

hull_swinging_arm(points, length, direction='ccw')

Create the hull of a set of points using the swinging arm algorithm.

This algorithm is described in Galton & Duckham. [1] Starting at the most northen point, iteratively create the border of a polygon by adding the first point intersecting the line (the arm) rotating around the point.

Parameters:

• points (list of Point) – The set of points.

• length (int) – The length of the line (or arm) that will rotate around the point.

• direction (str, optional) – The direction of the arm’s rotation. Can be ‘ccw’ or ‘cw’.

Returns:

list of Polygon

See also

hull_delaunay

Create the hull of a set of points using the Delaunay triangulation.

Notes

This algorithm can create multiple polygons, unlike hull_delaunay()

References

[1]

Antony Galton and Matt Duckham. What is the region occupied by a set of points? In International Conference Geographic Information Science. 2006. URL: https://api.semanticscholar.org/CorpusID:18406174.

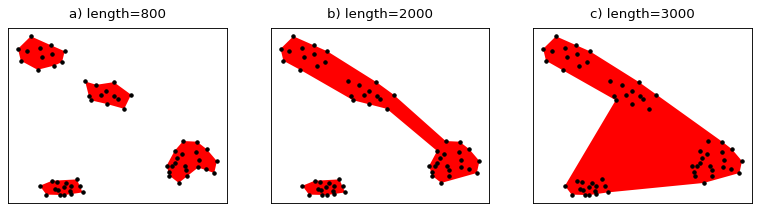

Examples

>>> points = [ Point(1, 1), Point(6, 6), Point(1, 6), Point(6, 5), Point(2, 4), Point(2, 1), Point(1, 4) ]
>>> swinging_arm(points, 5.0)
[<POLYGON ((1 4, 1 1, 2 1, 2 4, 1 4))>]

(Source code)
