cartagen.collapse_roundabouts

collapse_roundabouts(roads, roundabouts, crossroads=None, maximum_diameter=None)

Collapse roundabouts to a point.

This algorithm proposed by Touya [1] collapses roundabouts to a point if their diameter is below the given value.

Parameters:

• roads (GeoDataFrame of LineString) – Road network where roundabouts will be collapsed.

• roundabouts (GeoDataFrame of Polygon) – Polygons representing the faces of the network detected as roundabouts.

• crossroads (GeoDataFrame of Polygon, optional) – Polygons representing the faces of the network detected as branching crossroads. This allows incoming branching crossroads on roundabouts to be collapsed as well.

• maximum_diameter (float, optional) – Diameter, in meter, below which roundabouts are collapsed. Collpase all roundabouts if left to None.

Returns:

GeoDataFrame of LineString

Warning

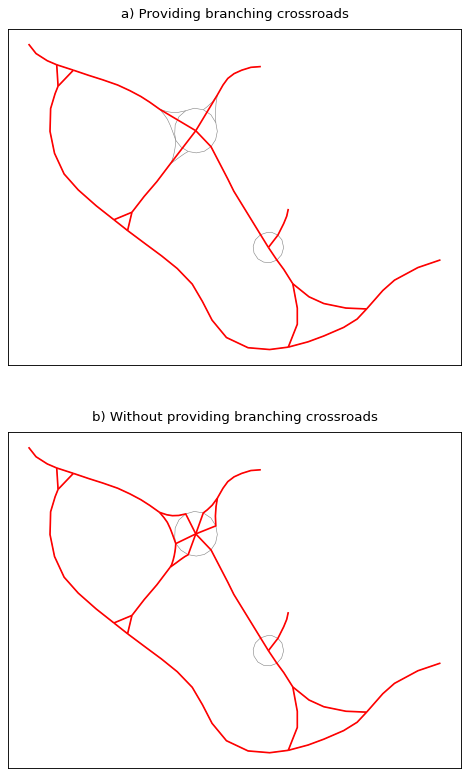

Detecting branching crossroads beforehand is important as a branching crossroad may be an entrance to a roundabout. This algorithm will collapse the roundabout as well as all its connected branching crossroads.

See also

detect_roundabouts

Detect roundabouts inside the road network.

detect_branching_crossroads

Detect branching crossroads inside the road network.

collapse_branching_crossroads

Collapse branching crossroads to a point.

References

[1]

Guillaume Touya. A Road Network Selection Process Based on Data Enrichment and Structure Detection. Transactions in GIS, 14(5):595–614, October 2010. URL: https://hal.science/hal-02309202, doi:10.1111/j.1467-9671.2010.01215.x.

(Source code)
